  2. Aten USB-C Dual-View Mini Dock. Dual DisplayPort, Single View:3840*2160@30, Dual View: 1920*1200@60 x 2
Brand:ATEN

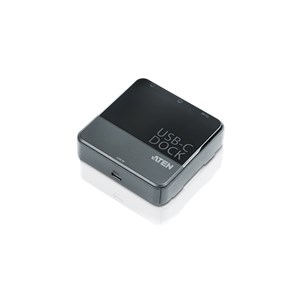

Aten USB-C Dual-View Mini Dock. Dual DisplayPort, Single View:3840*2160@30, Dual View: 1920*1200@60 x 2

$ 99.95 $ 99.95 99.95 AUD

$ 99.95

In Stock
Add to Cart

UH3231-AT

The ATEN UH3231 is a USB-C Dual-View Mini Dock which transforms your USB-C device to a dual monitor workstation. It’s compliant with the latest USB 3.1 Type-C specifications and supports a variety of video converters that can convert HDMI,DVI or VGA outputs for use in dual display mode. The UH3231 can route video from the source device to two DisplayPort monitors, splitting the video transmission for a dual-view display via a single cable while maintaining a high quality resolution up to 1080p.

The UH3231 USB-C Dual-View Mini Dock uses USB-C connections to create high-speed and reliable data transfers between a laptop or computer with the ability to connect up to 128 additional peripherals, including Dual DP and USB 3.0 devices. The UH3231’s slim and light design makes it ideal to maximize your workspace and travel with for business on the go.

USB 3.1 Gen1 compliant

Connects a computer to two DisplayPort monitors with Dual-View output

Supports 4K (UHD) resolutions via single display output

Supports dual-display video output up to 1920 x 1080 simultaneously*

USB 3.1 Gen1 port with data transfer rates up to 5 Gbps

Supports variety of video converters via Dual mode DisplayPort standard

Plug and Play – no drivers or external power adapter needed

* Mac computers only support a single-view output.

Specifications
Compatible SizeNotebook with USB-C Port
Product TypeDual-View Mini Dock
Warranty
Warranty2 Years
Connectors
Computer1 x USB-C Female (Black)
Device1 x USB3.1 Gen1 Type A Female (Blue)
Video Output2 x DisplayPort Female (Black)
Environmental
Humidity0–80% RH, Non-condensing
Operating Temperature0–40°C
Storage Temperature-20–60°C
Package Contents
Package Contents1x UH3231 USB-C Dual-View Mini Dock; 1x USB-C to USB-C Cable (1 m); 1x User Instructions
Physical Properties
Dimensions (L x W x H)9.37 x 9.30 x 2.68 cm
HousingPlastic
Weight0.10 kg
Power
ConsumptionDC5V , 15W
Video Resolution
Dual ViewDisplayPort - 1920*1200@60 (The UH3231 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI)
Single ViewDisplayPort - 3840*2160@30 (The UH3231 supports DP++ standard for using optional active/passive video adapter to convert DP signals to DVI/HDMI)
