Brand:Gigabyte

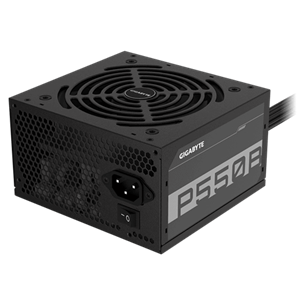

GIGABYTE GP-P550B 80 PLUS BROZE POWER SUPPLY

99.95 99.95 99.95 AUD

99.95

In Stock
Add to Cart

GP-P550B


GP-P550B – Power Supply

Features

  • 80 PLUS Bronze certified


  • 120mm Silent Hydraulic Bearing (HYB) Fan


  • Reliable flat cable


  • Single +12V rail


  • OVP/OPP/SCP/UVP/OCP/OTP protection


  • 3 years warranty (Adjusted according to different regions)


Specifications
Product TypeGP-P550B – Power Supply
Warranty3 Years
Weight1.81 kg
80 PLUSBronze
ConnectorsATX/MB 20+4 Pin x 1 : 550mm*1 CPU/EPS 4+4 Pin x 1 : 600mm*1 PCI-e 6+2 Pin x 2 : 550mm+150mm*1 SATA x 6 : 500mm+120mm+120mm*2 4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
Dimension1?50 x 140 x 86 mm
Efficiency8?5% at typical load
Fan Type1?20mm Hydraulic Bearing (HYB) Fan
Hold Up Time>16ms
Input Current8?-4 A
Input Frequency6?0-50 Hz
Input Voltage1?00-240 Vac(full range)
MTBF>100,000 hours
Output Capacity5?50W
PFCActive PFC(>0.9 typical)
Power Good Signal1?00-500ms
ProtectionOVP/OPP/SCP/UVP/OCP/OTP
TypeIntel Form Factor ATX 12V v2.31
