Brand:LinkBasic

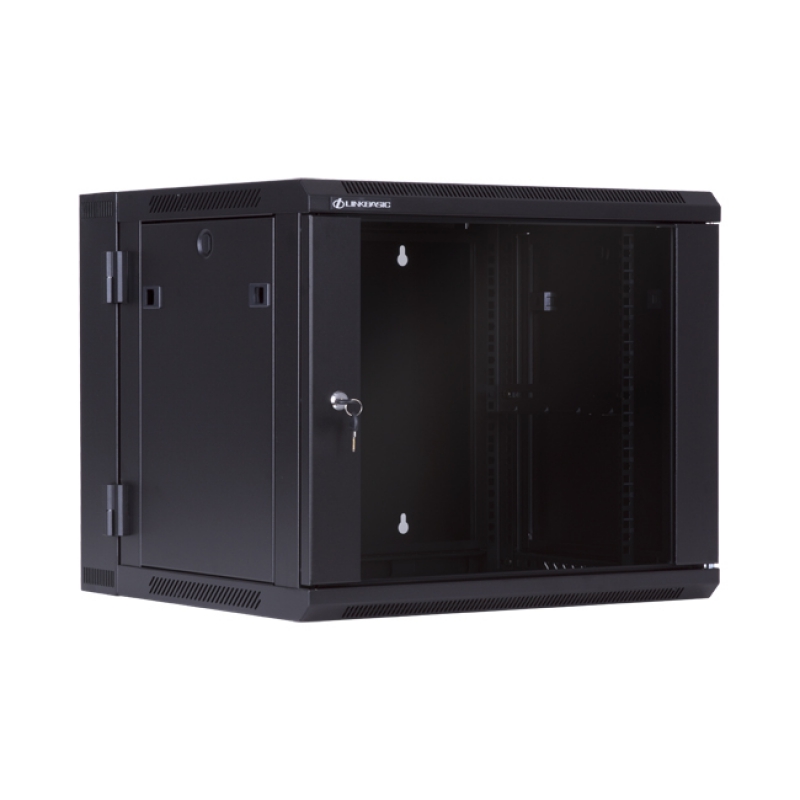

LinkBasic 9U, 600x550x501mm, Wall Mount Double Section Swing Frame with hinged rear access, Black Flat Pack

299.00 299.00 299.0 AUD

299.00


RCLB-WCC09-655-CA


DESCRIPTION

WCB-series two-section hanging cabinets are most often used in close circuit television, security alarm, and access control system installations, where quick and easy access to the back section of the cabinet is an important factor. Thanks to this, access to the back side of the mounted devices does not pose any difficulties. The colour of the cabinet is black RAL9004.

FEATURES


A two-section construction - fast and easy access to the back section of the cabinet
Standard equipment: mounting rail set
Side doors mounted on latches with a lock assembly option
A rack rail indicating the amount of units (U)
Two cable ducts - ceiling and floor
A frame with a load capacity of 60kg
Cold-rolled steel
Frame thickness: 1.2 mm
Mounting rail thickness: 1.5 mm
Side panel thickness: 1.2 mm
Protection class IP20
Surface finish: degreasing, etching, phosphating, powder coating
Protection against rust, oxidation, scratches, corrosion
Front door - glass or perforated steel
Available in black RAL9004 and grey RAL7044
Compliant with ANSI/EIA RS-310-D, DIN41491 PART1, IEC297-2, DIN41494 PART7, and GB/T3047.2-92 standards
Compatible with metric ETSI and 19-inch international standards


SPECIFICATION


Nominal height 9U
Total outer height 501mm
Outer width 600mm
Outer depth 550mm
Mounting depth 275mm
Colour Black RAL9004
Maximum load capacity 60kg
Protection class IP20
Front doors Glass with lock
Back doors n.d.
Side panels Full steel dismounted on latches with a lock assembly option
Cable ducts 2 pcs - ceiling and floor
Cable organizer No
Assembly kit 10 pcs
Frame thickness 1.2mm
Mounting rail thickness 1.5mm
Door thickness (steel) 1.2mm
Glass thickness 5.0mm
Side panel thickness 1.2mm
Base thickness 1.2mm
Cover thickness 1.2mm
