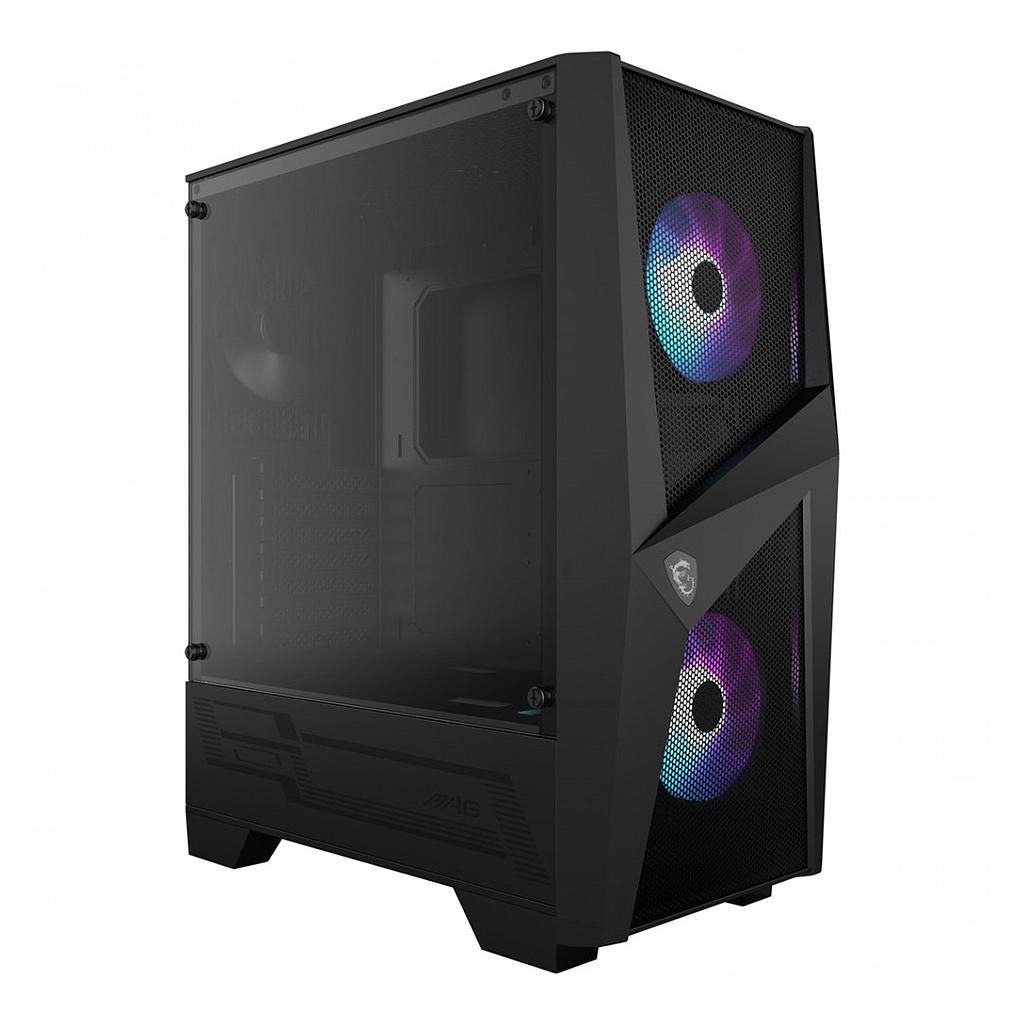

MSI MAG FORGE 100R CASE, Mid Tower ATX

• Product Name

MAG Forge 100R

• I/O Ports

2 x USB 3.2 Gen1 Type-A / 1 x HD Audio / 1 x Mic

• Driver Bays

2 x 3.5” (compatible with 2.5”) + 3 x 2.5”

• Case Expansion Slots

7

• Maximum GPU Length

330 mm

• Maximum CPU Cooler Length

160 mm

• Radiator Compatibility

120 / 140 / 240 mm

• Power Supply

Standard ATX 160 mm, max to 200 mm (without 3.5” HDD case installed)

• Cooling Layout

Front: Up to 3 x 120 mm / 2 x 140 mm
Top: Up to 2 x 120 mm / 2 x 140 mm
Rear: Up to 1 x 120 mm

• Pre-install Fan

Front: 2 x 120 mm addressable RGB LED Fan included
Rear: 1 x 120 mm System Fan included

• RADIATOR LAYOUT

Front: Up to 240 mm
Top: Up to 240 mm
Rear: Up to 120 mm

• Form Factor

Mid-Tower

• Support MB Form Factor

ATX / mATX / Mini-ITX

• Dimension

421(D) x 210(W) x 499(H) mm
17.05(D) x 8.27(W) x 19.65(H) inch

• Weight

5.64 kg
