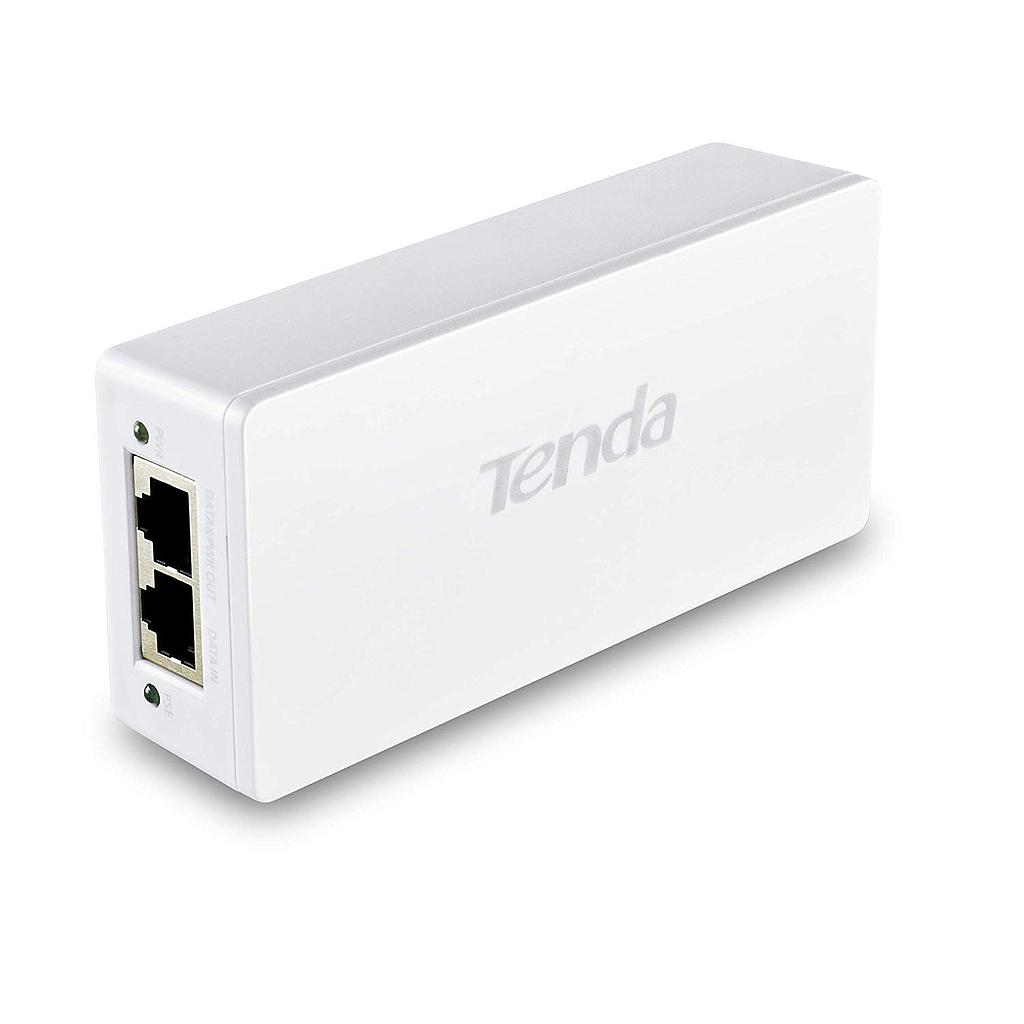

  2. PoE30G-AT Gigabit PoE+ injector IEEE802.3/3u/3ab/3af/3at compliant PoE switch with 1×10/100/1000 Base‑T (Data/PoE)
Brand:Tenda

PoE30G-AT Gigabit PoE+ injector IEEE802.3/3u/3ab/3af/3at compliant PoE switch with 1×10/100/1000 Base‑T (Data/PoE)

$ 29.95 $ 29.95 29.95 AUD

$ 29.95

Call for Availability
Add to Cart

PoE30G-AT

SPECIFICATIONS:

Hardware


Network standards

IEEE802.3、 IEEE802.3u 、IEEE802.3ab、IEEE802.3af、 IEEE802.3at

LED Indicator

PWR, PoE

Interfaces

1*10/100/1000 Base-T   Ethernet Port(Data/PoE)
  1*10/100/1000 Base-T Ethernet Port(Data)

Transmission media

Recommended: CAT5/5e   UTP or better

Dimension

132.3mm*60mm*33mm

Level of protection

ESD:
  Air discharge: ±10kV
  Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Transmission Rate

1000Mbps

PoE budget

Single port: AF: 15.4W,   AT: 30W
  Whole device: 30W

Power consumption

30W

Input voltage

100－240V AC 50/60Hz
  51V/0.8A DC（Power Adapter Output）

Mounting

Desktop mounting:   support

Environment

Operating Temperature:   0℃~45℃
  Storage Temperature: -40℃~70℃
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE 、RoHS、UL
