Brand:Ubiquiti

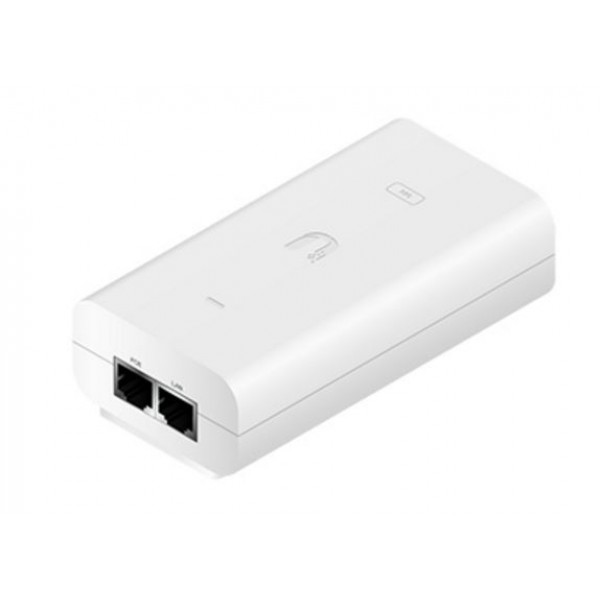

Ubiquiti POE Injector 54V 80W for EdgePoint

59.0059.0059.0AUD

59.00


NHU-POE-54V-80W


Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included

• Dimensions 123 x 65 x 34 mm

• Weight 299 g

• Output Voltage 54VDC @ 1.5A

• LAN Activity Indicator No

• Gigabit LAN Port Yes

• Remote Reset Capability No

• Reset Button 100-240AC @ 50/60Hz

• Input Voltage 100-240AC @ 50/60Hz

• Input Current 0.8A @ 120VAC

• 0.4A @ 240VAC

• Inrush Current <80A Peak @ 120VAC,

• <120A Peak @ 230VAC

• Efficiency 87+%

• Output Ripple 1% Max

• Switching Frequency 100 kHz Max.

• Line Regulation ± 1%

• Load Regulation ± 3%

• 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

• Operating Temperature 0 to 40° C (32 to 104° F)

• Storage Temperature -30 to 70° C (-22 to 158° F)

• Operating Humidity 35 to 95% Noncondensing

• AC Connector IEC-320 C6

• Data IN / POE RJ45 Shielded Socket

• Surge Protection Difference and Common Mode

• Clamping Protection 11V Data, 60V Power

• Max. Surge Discharge 1500A (8/20 µs) Power

• Peak Pulse Current 36A (10/1000 µs) Data

• Shunt Capacitance <5 pF data

• Response Time <1 ns

• Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
