Brand:Ubiquiti

Ubiquiti U7 In-Wall, Wall-mounted WiFi‎ 7 AP,4 Spatial Streams,Integrated 2.5 GbE

NHU-U7-IW

DESCRIPTION

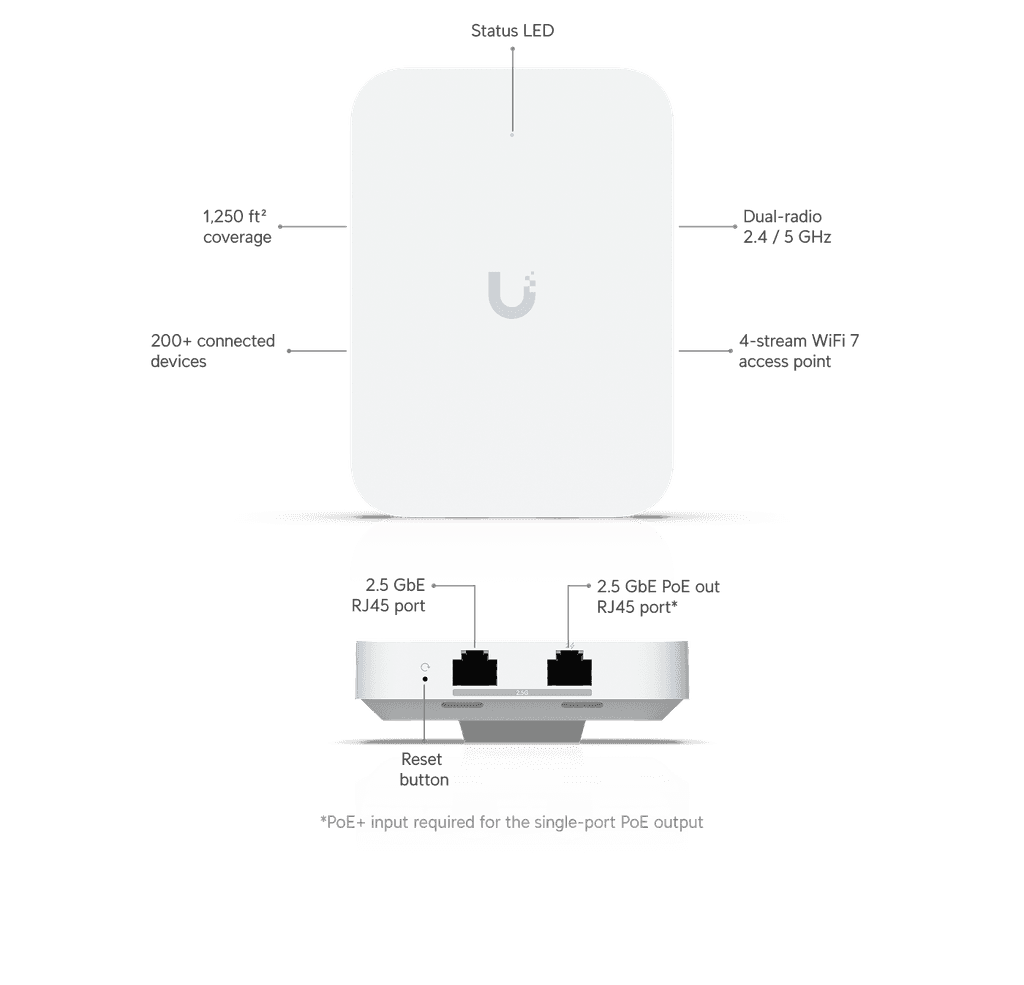

U7 In-Wall

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

WiFi 7

4 spatial streams

115 m² (1,250 ft²) coverage

200+ connected devices

Powered using PoE/PoE+*

2.5 GbE uplink

Note. PoE+ input required for single-port PoE output.

Seamless WiFi Installations

An interior designer's dream. Wall-mountable access points that enable seamless WiFi installations.

Designed for Massive Scale

These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.

Wi-Fi 7 Performance

The U7 In-Wall access point leverages the latest Wi-Fi 7 technology, delivering enhanced wireless speeds and reduced latency. Its discreet in-wall form factor seamlessly integrates into any environment.

Discreet, Powerful WiFi

A sleek, wall-optimised WiFi 7 AP crafted for private room deployments in hotels, offices, and multi-unit residences. It’s designed to blend seamlessly into any space while delivering the next level of wireless performance.

PoE Passthrough

Featuring PoE passthrough capabilities, the U7 In-Wall can power additional devices such as VoIP phones or other network equipment directly through its integrated switch. This reduces the need for extra power sources and simplifies your workspace setup.

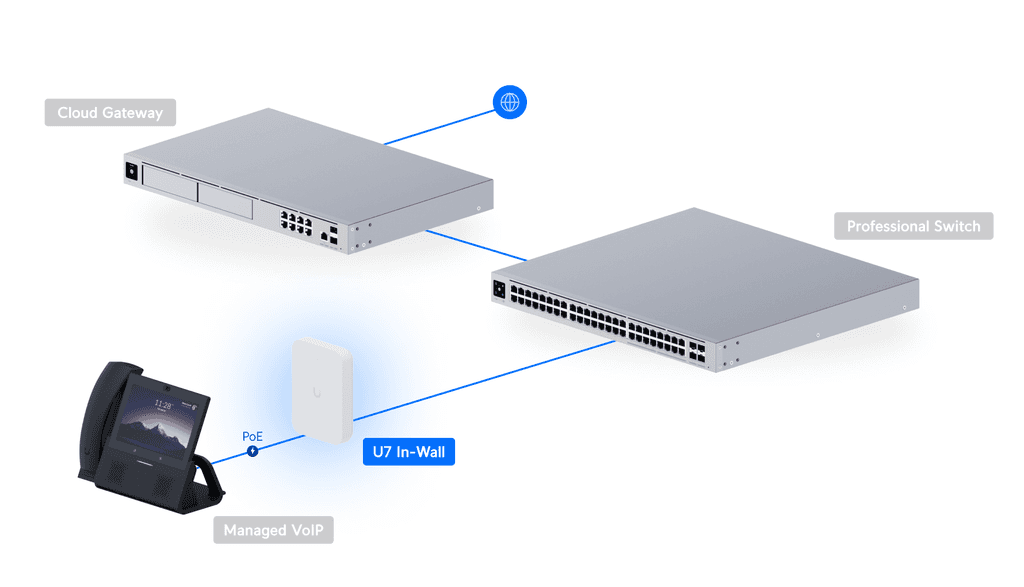

Deployment

Overview

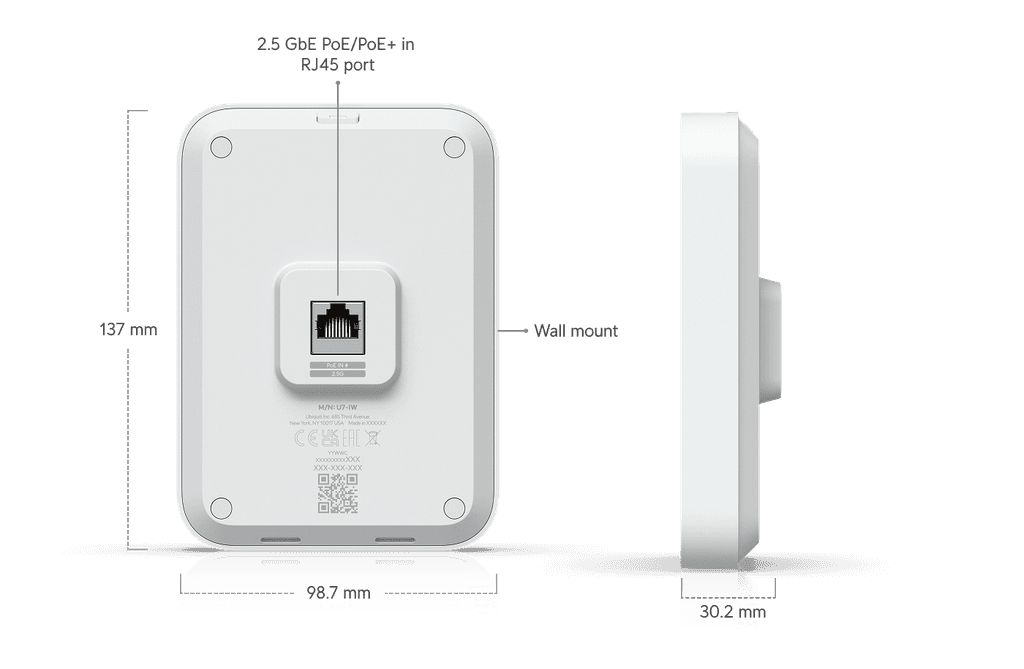

Dimensions

137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")

WiFi Standard

WiFi 7

Spatial Streams

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

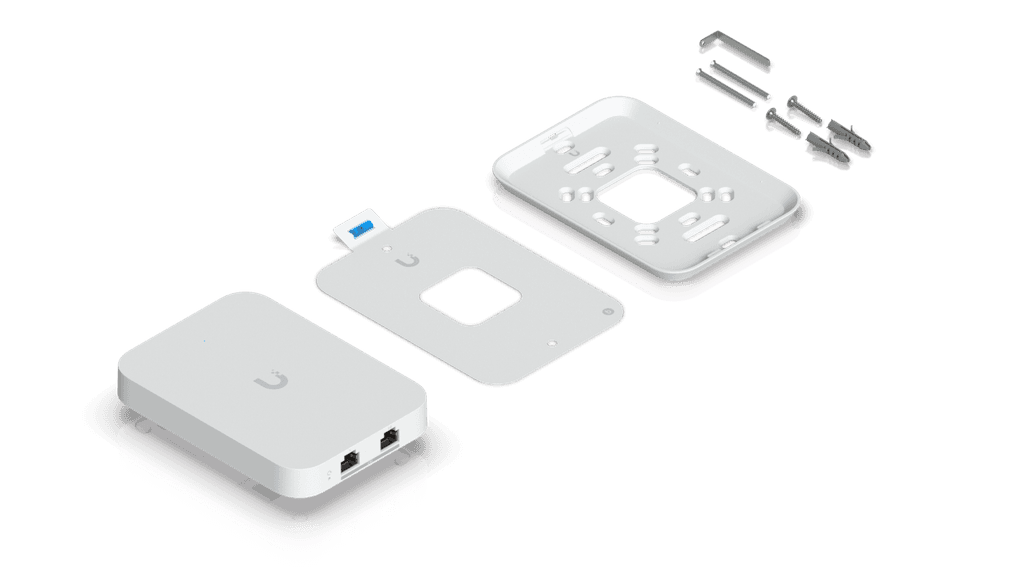

Mounting

Wall (Metal Wall Mount Included)

Power Method

PoE, PoE+ (Required for PoE output)

Performance

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 8 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W (Excluding PoE output)

Supported Voltage Range

42.5—57V DC

Networking Interface

(3) 2.5 GbE RJ45 ports

Weight

400 g (14.1 oz)

Management

Ethernet

Built-In Switch

(1) PoE+ input and (1) PoE output

Enclosure Material

Polycarbonate, aluminium alloy

Mount Material

Aluminium alloy

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.0.114 and later

UniFi OS

iOS™ Version 10.20.2 and later
Android™ Version 10.21.7 and later
