Brand:Ubiquiti

Ubiquiti U7 Lite,Compact, Ceiling-mounted WiFi 7 AP, 4 Spatial Streams,2.5 GbE Uplink,115 m² Coverage,200+ Connected Devices,Power via POE

NHU-U7-LITE

DESCRIPTION

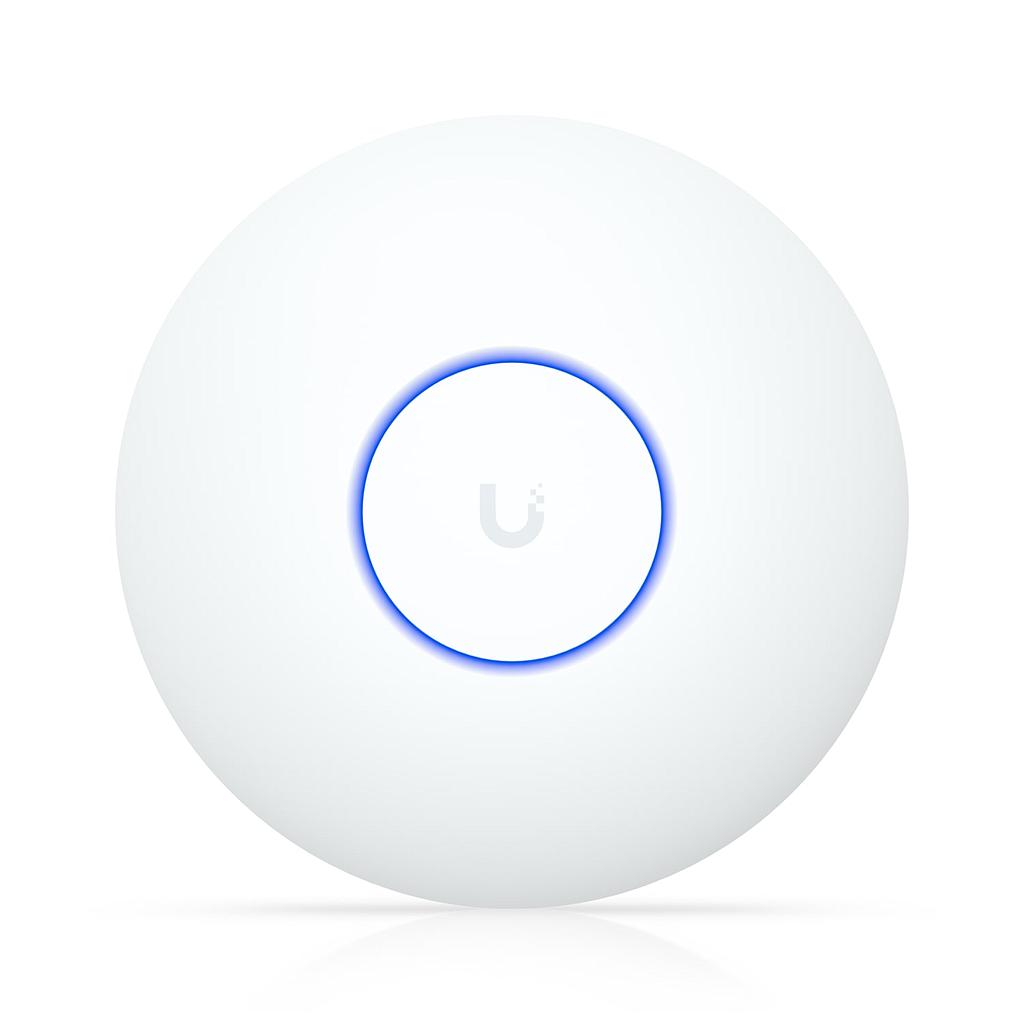

U7 Lite

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

WiFi 7

4 spatial streams

115 m² (1,250 ft²) coverage

200+ connected devices

Powered using PoE

2.5 GbE uplink

The WiFi Industry Standard

Designed for Massive Scale

These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.

Wi-Fi 7 Performance

The U7 Lite is an ultra-compact, highly capable WiFi 7 access point. This powerhouse comes in at an incredible price point, making top-tier connectivity more accessible than ever before.

Advanced Features

Just like Ubiquiti's other WiFi 7 access points, the U7 Lite is fully equipped with advanced WiFi 7 features like preamble puncturing to avoid 5 GHz interference and MLO for ultra low client latency.

Optimised Coverage

The U7 Lite is designed to support a high number of simultaneous client connections without compromising performance. Its advanced Wi-Fi 7 technology ensures wider coverage and stronger signal stability, providing seamless connectivity across homes, offices, and small businesses.

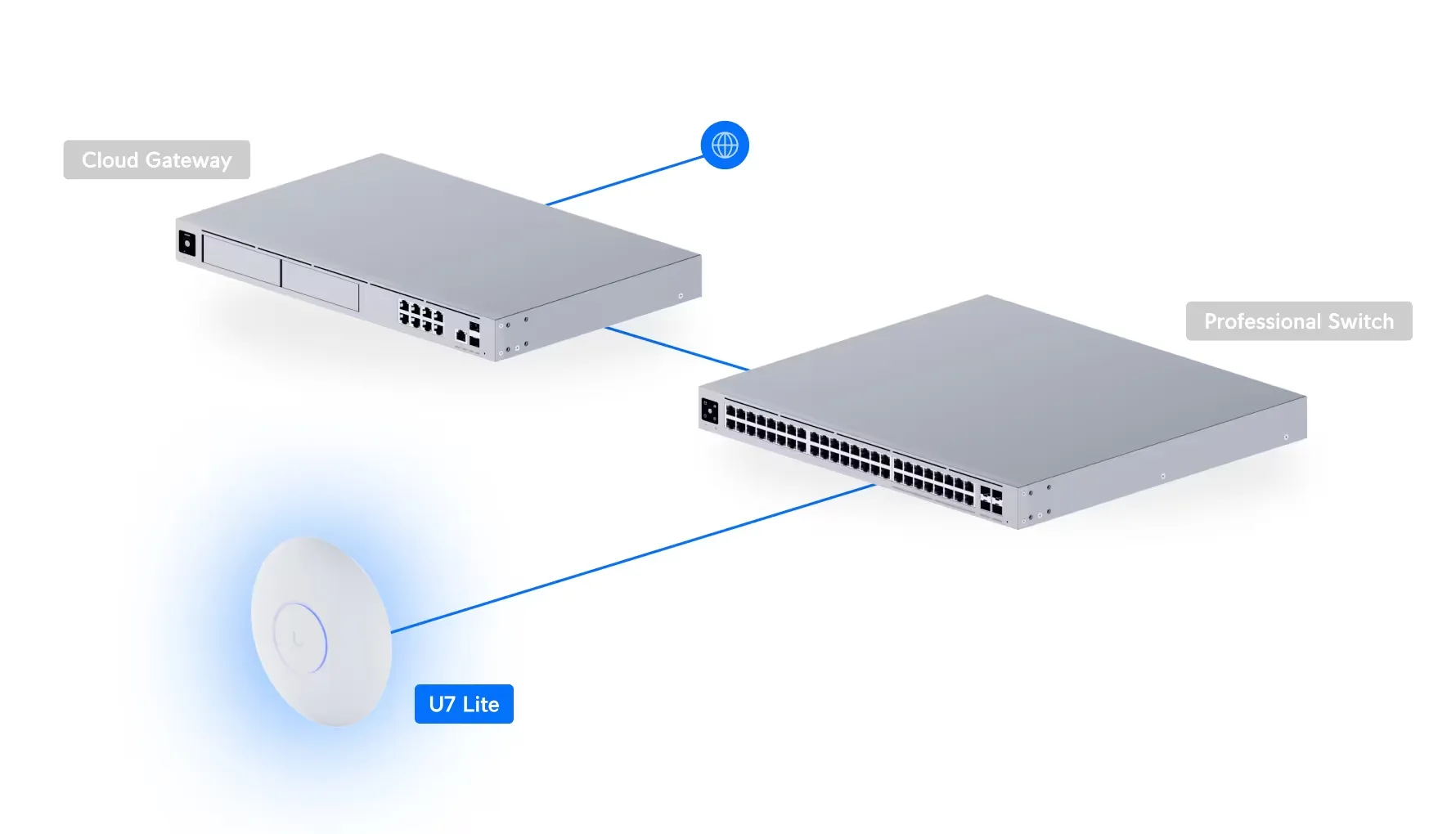

Deployment

Overview

Dimensions

Ø171.5 x 33 mm (Ø6.8 x 1.3")

WiFi Standard

WiFi 7

Spatial Streams

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

Mounting

Ceiling, Wall (Lite Mount Included)

Power Method

PoE

Performance

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 5 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W

Supported Voltage Range

42.5—57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilised polycarbonate

Mount Material

UV-stabilised polycarbonate, galvanised steel (SGCC)

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

NDAA Compliant

Yes

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.0.114 and later

UniFi OS

iOS™ Version 10.20.2 and later
Android™ Version 10.21.7 and later
