Brand:ASRock

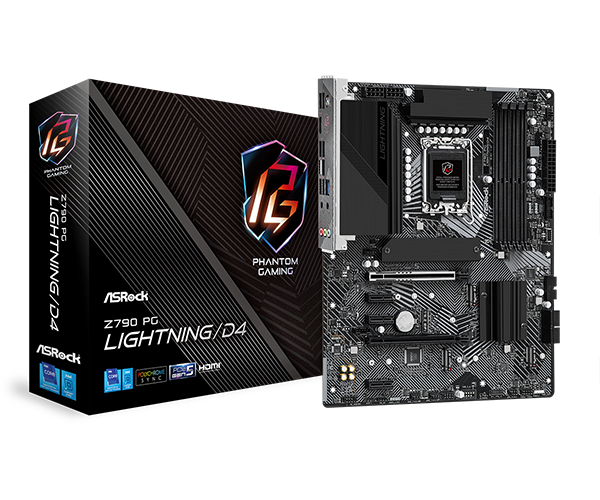

Z790-PG-LIGHTNING/D4 [ASROC / Motherboard - Gaming]
Z790-PG-LIGHTNING/D4
Z790M PG Lightning/D4
- Supports 13th Gen & 12th Gen Intel® Core™ Processors
- 10+1+1 Phase Power Design, Dr.MOS for VCore+GT
- 4 x DDR4 DIMMs, supports up to 5333+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 1 USB 3.2 Gen1 Type-C (Front), 6 USB 3.2 Gen1 Type-A (4 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
Specifications
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Chipset | Intel® Z790 |
| Form Factor | 30.5 cm x 24.4 cm |
| I/O Connectors | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) - 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) - 5 x USB 3.2 Gen1 Ports - 1 x USB 2.0 Port - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Integrated CPU Graphics | - Intel® Xe Graphics Architecture (Gen 12) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Memory/Type/Bus/Max. | 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)* |
| PCI Slots | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode* - 3 x PCIe 3.0 x1 Slots (PCIE2, PCIE3 and PCIE5)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire™ *Supports NVMe SSD as boot disks |
| Processor Support | Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) |
| Raid | - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| RAM Type/Bus/Max. | 4 x DDR4 DIMM Slots - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) |
| Socket | 13th adn 12th Gen / LGA1700 |
| Storage Interface | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| Warranty | 3 Years |
| Weight |
